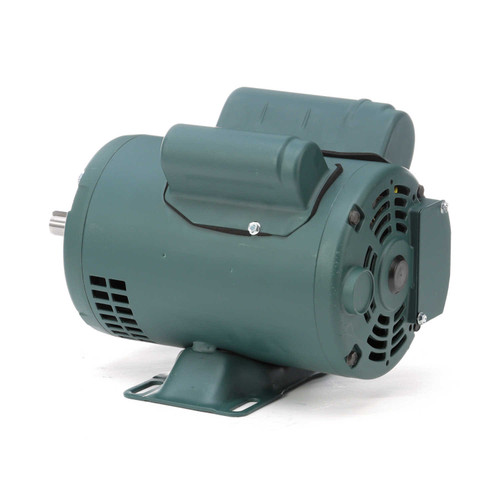

E100338.00 Leeson | 1/2 hp 1725 RPM 48 Frame 115/208-230 Volts Open Drip

SKU:
E100338
Weight:
30.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $471.00
Now: $399.40
Adding to cart… The item has been added
  • 1/2 hp 1725 RPM, 4.6/2.3 amps 115/208-230 Volts 60hz. single Phase Motor
  • NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.25 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

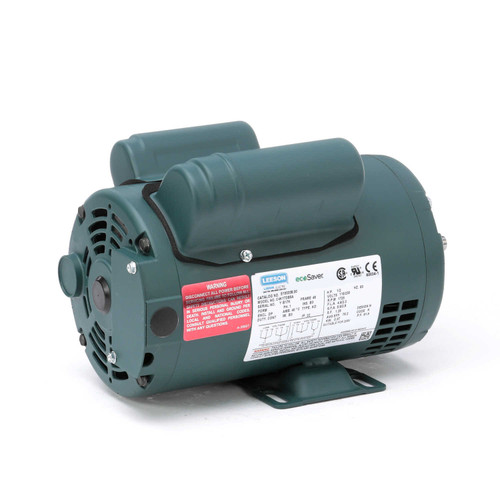

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

C4K17DB5A, E100338.00
