sale
Leeson

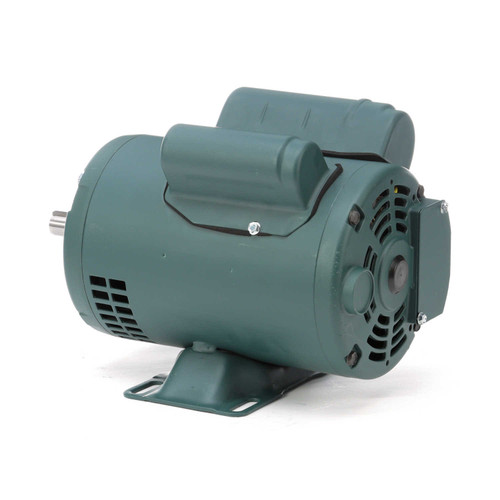

E100115.00 Leeson | 1/4 hp 1725 RPM 48 Frame 115/208-230 Volts Open Drip
(No reviews)
Write a Review
Write a Review
Leeson
E100115.00 Leeson | 1/4 hp 1725 RPM 48 Frame 115/208-230 Volts Open Drip
$434.70
$368.69
SKU
E100115.00
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/4 HP
RPM
1725
Phase
Single Phase
Frame
48
Enclosure
ODP
Hertz
60 Hz
Amperage
2.4/1.2 Amps
Bearings
Ball Bearings
Service Factor
1.35
Insulation Class
Class F
Mounting
Rigid Base
- 1/4 hp 1725 RPM, 2.4/1.2 amps 115/208-230V 60hz. single Phase Motor
- NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 1/2"
- Service Factor: 1.35 - overload protection = Automatic
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.
A4K17DB11A, E100115.00
Replaces Century Motor # C157LES
Replaces Marathon C148, C148A, 048B17D11015
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/4 HP |
| RPM | 1725 |
| Phase | Single Phase |
| Frame | 48 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 2.4/1.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.35 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
