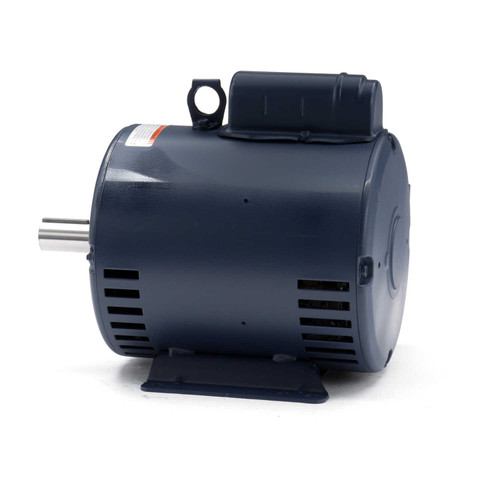

131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip
131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip
131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip
131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip
131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip
131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip
131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip
131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip

Leeson

131535.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip

(No reviews) Write a Review
$875.90
$736.00
SKU 131535
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 115/208/230V
Horsepower 2 HP
RPM 1725
Phase Single Phase
Frame 182T
Enclosure ODP
Hertz 60 Hz
Amperage 24.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp 1725 RPM, 24.5 amps/12.4 amps 115/208-230 Volts 60hz. single Phase Motor
  • NEMA 182T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = Auto
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

U182C17DB9A, 131535.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 115/208/230V
Horsepower 2 HP
RPM 1725
Phase Single Phase
Frame 182T
Enclosure ODP
Hertz 60 Hz
Amperage 24.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
