E116704.00 Leeson | 2 hp 1725 RPM 56H Frame 115/208-230 Volts Open Drip

E116704.00 Leeson | 2 hp 1725 RPM 56H Frame 115/208-230 Volts Open Drip

This Leeson 2 hp single-phase electric motor is designed for general-purpose applications requiring reliable performance. It replaces models E116704.00, M56B17DRR70033A3A, and Century C210ES, offering a versatile solution for various industrial and HVAC needs.

Key Specifications

• Horsepower: 2 hp
• RPM: 1725
• Voltage: 115/208-230 Volts
• Amperage: 16.0/8.0 amps
• Enclosure: Open Drip Proof (ODP)

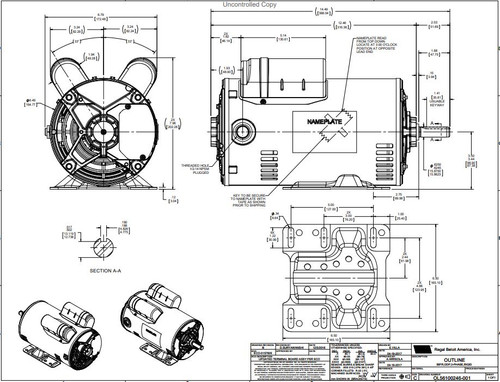

• Frame / Diameter: NEMA 56H Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. It operates on single-phase power at 60 Hz and is equipped with Class F insulation and ball bearings for durability. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections. Overload protection is manual, and the motor is suitable for a wide range of industrial and HVAC applications.

Cross Reference

• 116704.00
• Replaces Century C210ES

Warranty

1 Year Manufacturer Warranty
