113266.00 Leeson | 1.5 hp 1725 RPM 56H Frame 115/208-230 Volts Open Drip

113266.00 Leeson | 1.5 hp 1725 RPM 56H Frame 115/208-230 Volts Open Drip

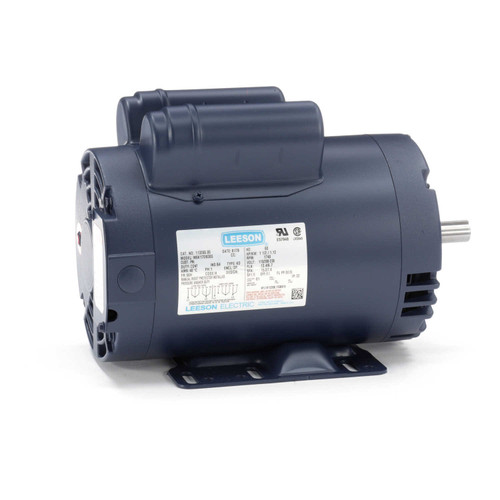

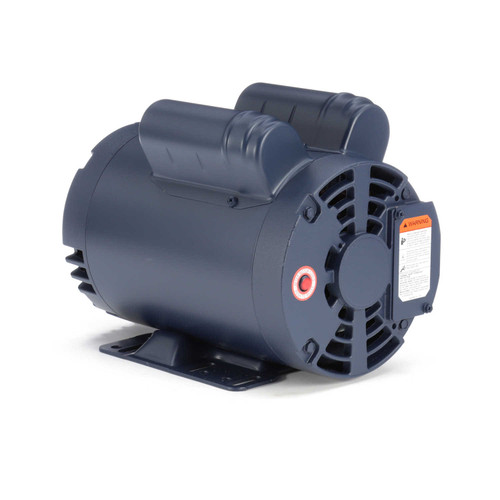

This Leeson 1.5 horsepower single-phase electric motor is designed for general-purpose applications requiring reliable performance. It features a rigid base mount and a keyed shaft, making it suitable for a variety of industrial and HVAC equipment replacements.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 115/208-230 Volts
• Amperage: 13.4/6.7 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56H Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a rigid base mount for secure installation and features a keyed shaft to ensure proper coupling with driven equipment. It is equipped with Class B insulation and manual overload protection. The wiring diagram is conveniently located on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
