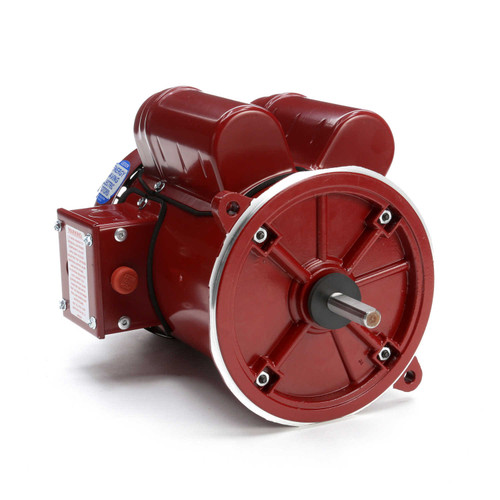

101120.00 Leeson | 1/2 hp 1725 RPM 48YZ 115/208-230V Feed Auger Drive Motor

• 1/2 hp 1725 RPM, 8.0/4.0 amps; 115/208-230V 60 hz.; Electronic Start switch
• NEMA 48YZ Frame, Shaft: 1/2" X 1.5" with flat
• Dust-tight, capacitor start motor
• Fully gasketed; Manual Overload Protection
• Class F Insulation;  Service Factor 1.15
• One Year Manufacture Warranty

Applications: Designed for direct drive poultry & swine auger feeding systems. Dust-tight, capacitor start motor with your choice of field proven electronic or protected mechanical starting switch both eliminate damage caused when motor is over-speeded by obstructed auger. Ball bearing, heavy duty industrial quality designs for high overload capacity. Side mounted conduit box. Flange mounts directly to drive assembly. Fully gasketed to keep out feed dust. Has screw driver slot in rear shaft. Continuous duty, with manual thermal overload protection. Motors of 3/4 HP and less have shaft of 1/2" diameter x 1.5" length, with flat; motors 1 HP and larger have 5/8" diameter x 1.97" length, with key.

Model P4C17FZ7M; 101120.00
