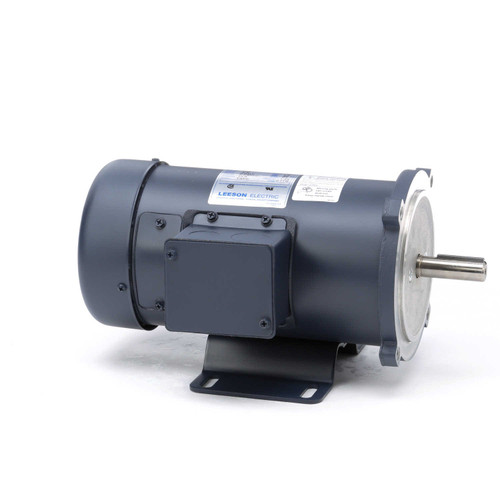

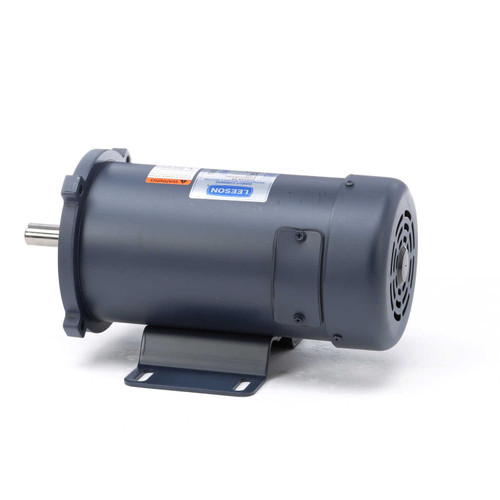

098008.00 Leeson | 1/2 hp 1800 RPM 180 Volts DC 56C Frame TEFC

098008.00 Leeson | 1/2 hp 1800 RPM 180 Volts DC 56C Frame TEFC

This Leeson 1/2 horsepower permanent magnet DC motor operates at 1800 RPM and 180 Volts DC, designed for applications requiring adjustable speed and constant torque. It is ideal for use with SCR controllers and supports dynamic braking and reversible rotation.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 180 Volts DC
• Amperage: 2.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" diameter x 1-7/8" length, keyed shaft
• Rotation: Reversible with simple 2-lead connection

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. When removing the base, reinstall bolts with washers to compensate for base thickness. This motor is compatible with Leeson speed controls models 174307 and 174308. It meets UL and CSA listings and complies with NEMA MG1 standards.

Warranty

1 Year Manufacturer Warranty
