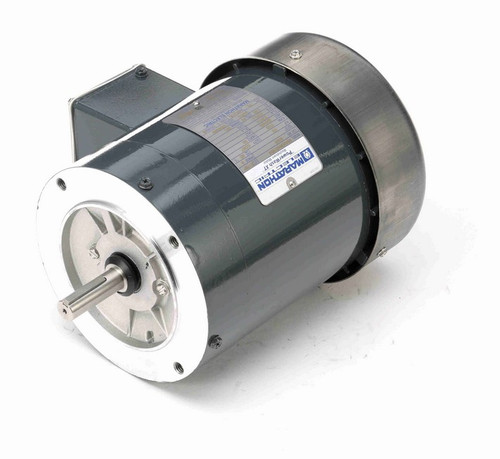

1/2 hp 1800 RPM 3-Phase 56C Frame TEFC (no base) 230/460V Marathon Motor # K606

SKU:
K606
Weight:
24.00 LBS
Shipping:
Calculated at Checkout
$389.83
  • 1/2 hp 1800 RPM, 2.2/1.1 amps 230/460 Volts 60hz. 3-Phase

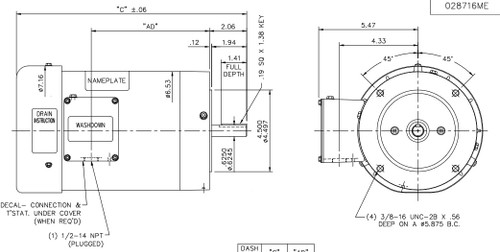

  • NEMA 56C frame, C-face, Keyed Stainless Steel Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = Auto
  • No Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Severe Duty wet environment/car wash motor having a C-face mount and requiring three phase power. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 5K42GN4619
