sale
Marathon

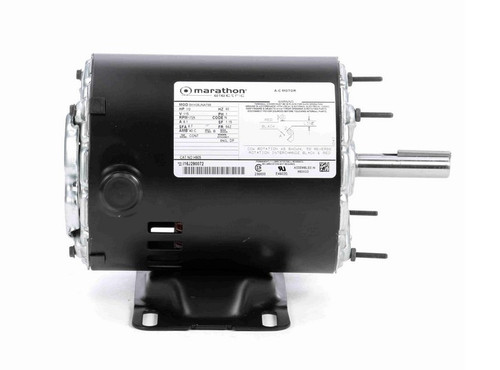

H905 Marathon 1/2 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
H905 Marathon 1/2 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor
$260.02
$225.98
SKU
MH905
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115V
Horsepower
1/2 HP
RPM
1800
Phase
Single Phase
Frame
48
Enclosure
ODP
Hertz
60 Hz
Type
Split Phase
Amperage
8.1 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
H905 Marathon 1/2 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor
This Marathon 1/2 horsepower electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It is ideal for replacing or upgrading existing motors with similar specifications in HVAC and industrial equipment.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 1800
- Voltage: 115V
- Amperage: 8.1 amps
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 48 Frame
- Shaft Dimensions: 1/2" Diameter x 2 1/4" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This split-phase motor features a rigid base mount and steel endshields for durable installation. It includes Class B insulation and a keyed shaft for secure coupling. Wiring diagrams are provided on the motor nameplate to facilitate proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 48 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Type | Split Phase |
| Amperage | 8.1 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
