S006 Marathon 1/3 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

SKU:: S006
UPC:
Weight:: 14.00 LBS
Width:: 7.00 (in)
Height:: 7.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115V
Horsepower:: 1/3 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 48
Enclosure:: ODP
Hertz:: 60 Hz
Type:: Split Phase
Amperage:: 6.6 Amps
Bearings:: Ball Bearings
Service Factor:: 1.0
Insulation Class:: Class B
Mounting:: Rigid Base

Current Stock:

Was: $241.50

Now: $206.94

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

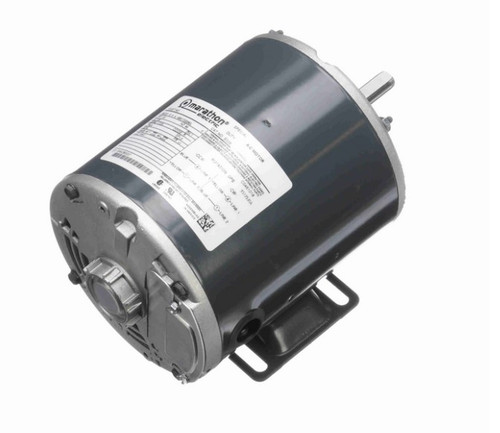

S006 Marathon 1/3 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

This Marathon 1/3 horsepower electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It serves as a direct replacement for equipment needing a 48 frame, 115V motor with an open drip-proof enclosure.

Key Specifications

Horsepower: 1/3 hp
RPM: 1800
Voltage: 115V
Amperage: 6.6 amps
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: NEMA 48 Frame
Shaft Dimensions: 1/2" diameter x 1 1/2" length, keyed
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This split-phase motor features a rigid base mount for secure installation and includes a wiring diagram on the motor nameplate for easy setup. It is equipped with Class B insulation and designed without overload protection. The motor’s reversible rotation and keyed shaft make it suitable for a variety of industrial and HVAC applications.
