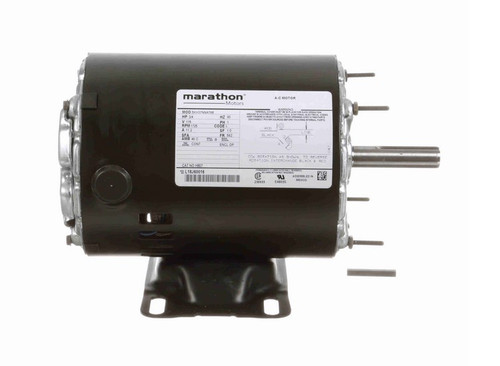

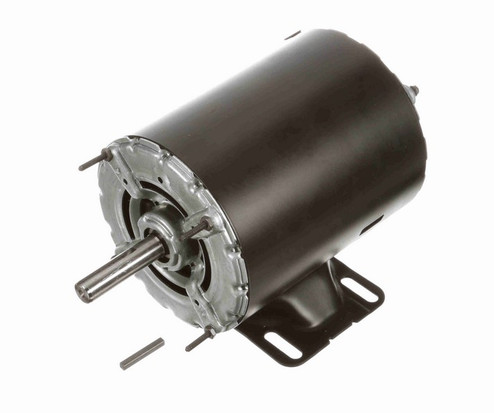

H907 Marathon 3/4 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

H907 Marathon 3/4 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

This Marathon 3/4 horsepower electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It serves as a direct replacement for equipment needing a 115V, 1800 RPM motor with an open drip proof enclosure.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115V
• Amperage: 11.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 2 1/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This split-phase motor features a rigid base mount and steel endshields for durable installation. It includes Class B insulation and a keyed shaft for secure coupling. Wiring information is provided on the motor nameplate to facilitate proper electrical connections.

Warranty

1 Year Manufacturer Warranty
