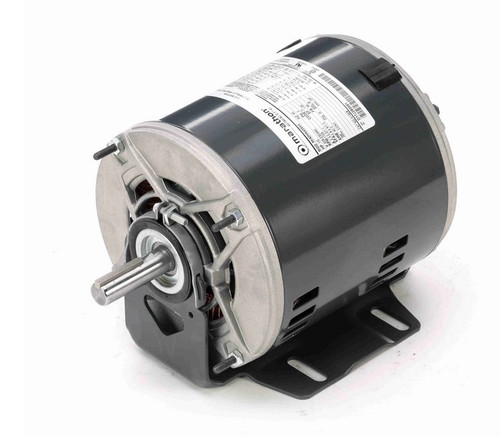

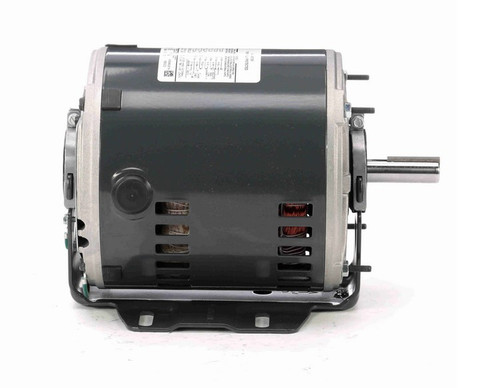

K1408 Marathon 1/2 hp 3 phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

K1408 Marathon 1/2 hp 3 Phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

This Marathon 1/2 horsepower, 3-phase motor is designed for general-purpose industrial applications requiring reliable performance. It is a direct replacement motor featuring a resilient base mount and an open drip proof (ODP) enclosure suitable for various equipment setups.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 208-230/460V, 60 Hz
• Amperage: 2.3-2.2/1.1 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a resilient base mount for vibration reduction and ease of installation. It features a service factor of 1.25 with automatic overload protection and Class B insulation for durability. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
