K278 Marathon 1 hp 3 phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

K278 Marathon 1 hp 3 phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

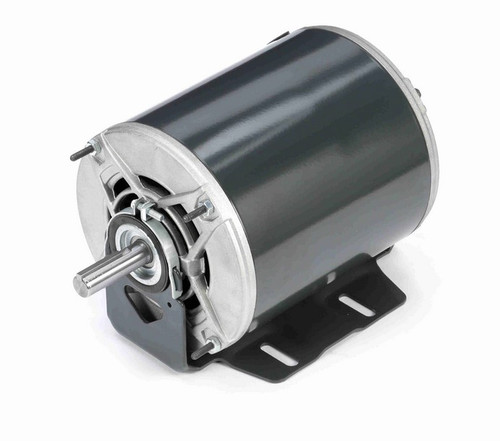

This Marathon 1 hp, 3-phase electric motor operates at 1800 RPM and is designed for general-purpose industrial applications. It replaces Leeson C6T17DR37A and E110052.00 models, providing reliable performance with a resilient base mount and open drip proof (ODP) enclosure.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208-230/460 V, 60 Hz
• Amperage: 3.8-3.6/1.9 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base mount for vibration isolation and ease of installation. It includes a keyed shaft for secure coupling and uses Class B insulation for enhanced durability. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections.

Cross Reference

• Leeson C6T17DR37A, E110052.00

Warranty

1 Year Manufacturer Warranty
