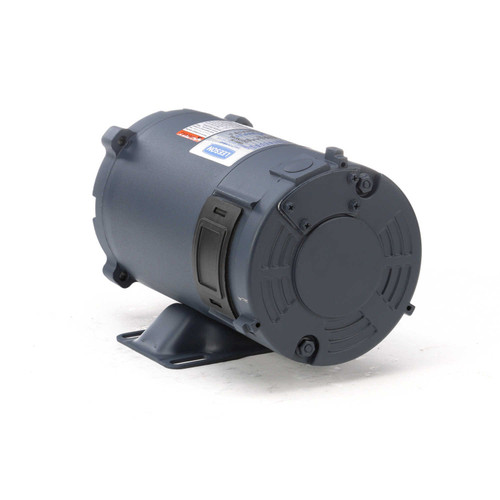

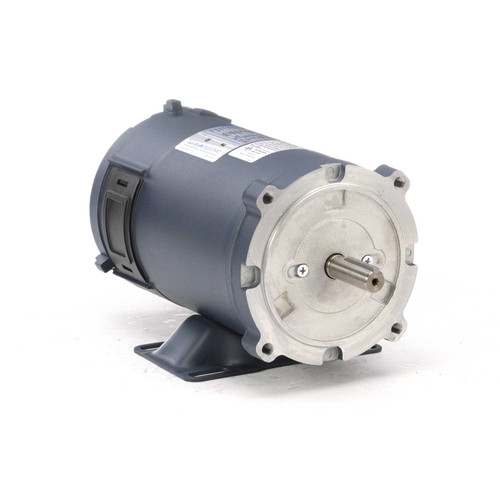

108051.00 Leeson | 1/2 hp 1800 RPM 56C Frame 24 Volts DC TENV

108051.00 Leeson | 1/2 hp 1800 RPM 56C Frame 24 Volts DC TENV Motor

This 1/2 horsepower, 1800 RPM permanent magnet DC motor is designed for low voltage applications such as battery or solar-powered systems. It serves as an exact replacement for the Dayton 6ML03 motor and is suitable for heavy load operations requiring high starting torque.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 24 Volts DC
• Amperage: 20.0 Amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame
• Rotation: Reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. Its linear speed and torque characteristics across the entire speed range allow for precise control, and it supports dynamic braking for faster stops. The simple two-lead connection enables easy reversible operation. Compatible with Leeson speed control model 175291.

Cross Reference

• Dayton 6ML03 (The Dayton is actually made by Leeson Electric). Can use with Leeson speed control 175291

Warranty

1 Year Manufacturer Warranty
