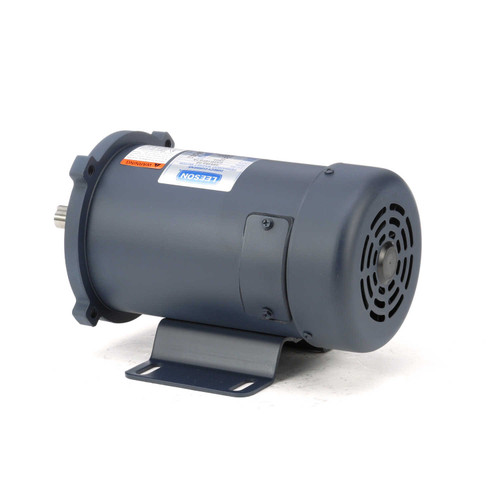

1/2 hp 1800 RPM 56C Frame 48V DC TEFC Leeson Electric Motor # 098382

21.00 LBS
Free Shipping
  • 1/2 hp 1800 RPM 56C Frame 48 Volts DC TEFC
  • NEMA 56C Frame Low Voltage Motor 24 Volts DC 11.0 Amps
  • 56C Face with Removable Bolt On Base
  • TEFC = Totally Enclosed Fan cooled
  • Permanent magnet DC motor
  • 1 Year Manufacture Warranty

Low voltage permanent magnet DC motors are suitable for installations having battery or solar powered operations. High starting torques for heavy load applications. Linear speed/torque characteristics over entire speed range. Capable of dynamic braking for faster stops. Motors have sealed ball bearings. Reversible-Simple 2-lead connection. Can use with Leeson speed control 175292.

C42D18FK7A, 098382.00
