191205.00 Leeson | 1/2 hp 1800 RPM 56C Frame TENV 208-230/460 Volts Stainless Steel

191205.00 Leeson | 1/2 hp 1800 RPM 56C Frame TENV 208-230/460 Volts Stainless Steel Motor

This Leeson stainless steel motor is designed for demanding industrial applications requiring corrosion resistance and durability. It replaces models 191205.40 and Marathon N431, making it ideal for severe washdown environments and other harsh conditions.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 208-230/460 Volts, 60 Hz
• Amperage: 1.6 / 0.80 Amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame

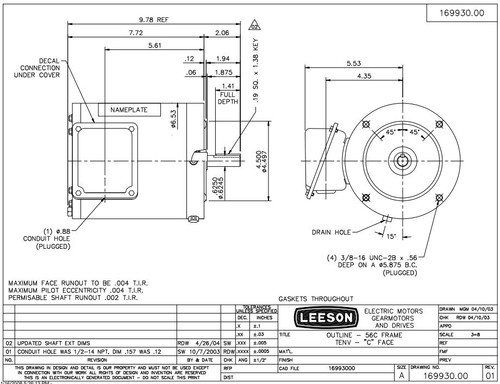

• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible

Product Features & Fitment

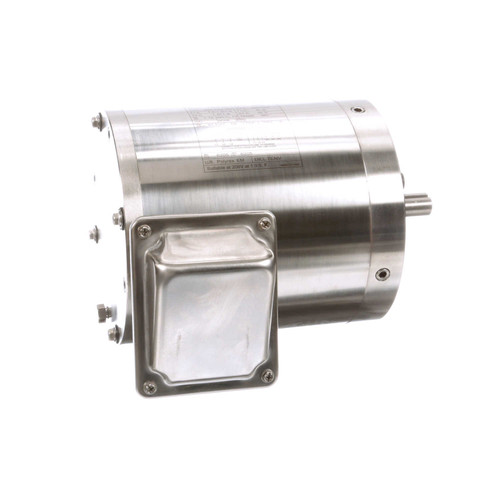

Constructed entirely from 300 series stainless steel—including frame, endshields, fan guard, shaft, hardware, conduit box, and cover—this motor offers superior corrosion resistance without paint or coatings. The motor features a C-face mount with no base, and its nameplate data is permanently laser-etched into the frame to prevent wear or contamination. The service factor is rated at 1.15, ensuring reliable performance under load.

Cross Reference

• 191205.40
• Replaces Marathon N431, 056T17VD5330

Warranty

1 Year Manufacturer Warranty
