108226.00 Leeson | 1/2 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty

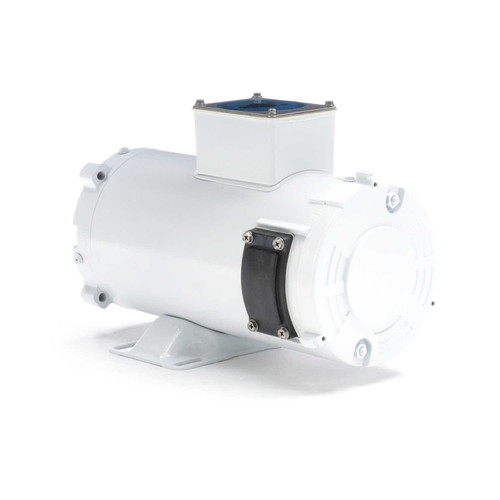

108226.00 Leeson | 1/2 hp 1800 RPM 56C TENV Frame 90 Volts DC Wash Down Duty Motor
This Leeson 1/2 horsepower washdown duty motor is designed for industrial applications requiring reliable DC power and moisture resistance. It replaces standard motors in environments where washdown and corrosion protection are critical.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 1800
- Voltage: 90 Volts DC
- Amperage: 5.0 amps
- Enclosure: Totally Enclosed Non Ventilated (TENV)
- Frame / Diameter: NEMA 56C Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Product Features & Fitment

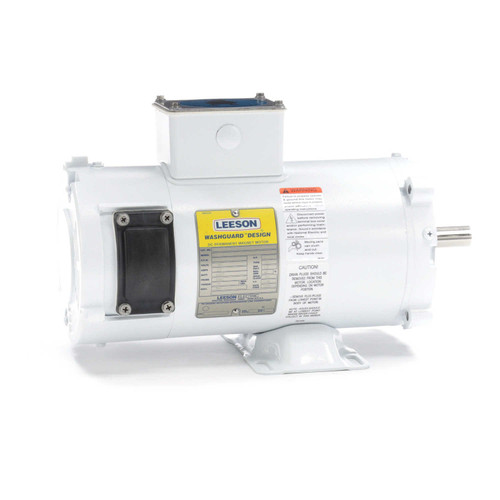

This motor features Leeson's Washguard design with a removable rigid base for flexible mounting options. It is coated with durable Rust-Oleum white epoxy paint and includes stainless steel components such as the shaft, conduit box cover, nameplate, and fan guard to resist corrosion. Moisture protection is enhanced by special gaskets, slingers, seals, four endshield drains, and moisture-resistant interior components. Compatible with Leeson speed controls models 174102, 174107, and 174307.
Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 90V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Frame | 90 |
| Enclosure | TENV |
| Amperage | 5.0 Amps |
| Service Factor | 1.0 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
