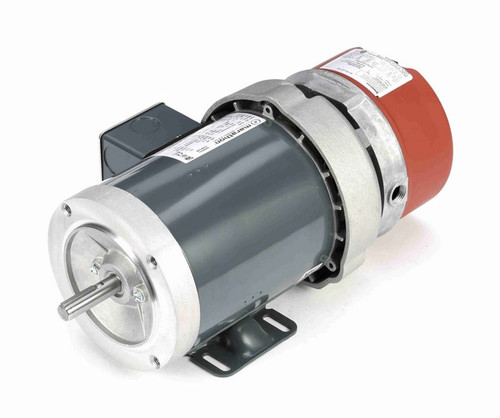

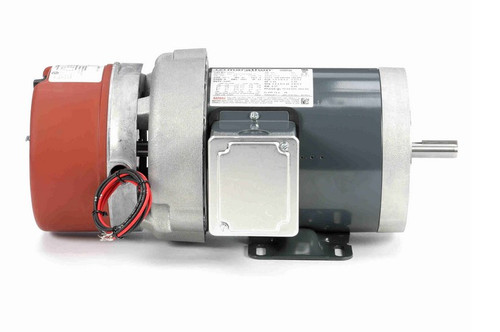

D452 Marathon 1/2 hp 3 phase 1800 RPM 56C Frame 208-230/460V TEFC Marathon Electric Brake Motor

SKU:
D452
Weight:
30.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $938.90
Now: $824.20
Adding to cart… The item has been added
  • 1/2 hp 1800 RPM, 2.4-2.3/1.2 amps 208-230/460 Volts 60hz. 3 phase Motor
  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Reversible, Removable Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled, 056T17F5349
