sale
Marathon

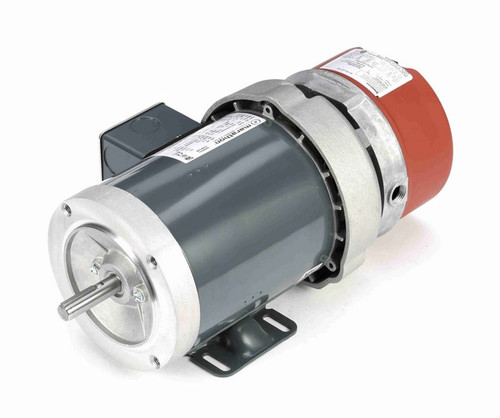

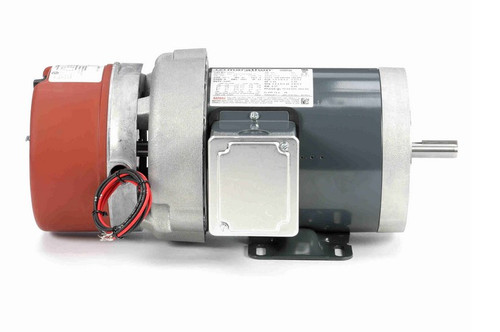

D452 Marathon 1/2 hp 3 phase 1800 RPM 56C Frame 208-230/460V TEFC Marathon Electric Brake Motor
(No reviews)
Write a Review
Write a Review
Marathon
D452 Marathon 1/2 hp 3 phase 1800 RPM 56C Frame 208-230/460V TEFC Marathon Electric Brake Motor
$1,079.74
$947.83
SKU
D452
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/2 HP
RPM
1800
Phase
Three Phase
Frame
56C
Enclosure
TEFC
Hertz
60 Hz
Amperage
2.3/1.2 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
- 1/2 hp 1800 RPM, 2.4-2.3/1.2 amps 208-230/460 Volts 60hz. 3 phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15, Overload protection = None
- Reversible, Removable Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled, 056T17F5349
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 2.3/1.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
