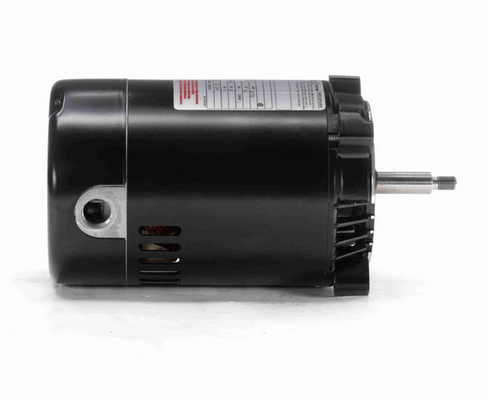

T1052 Century 1/2 hp 3600 RPM 1-Phase 56J Frame ODP (no base) 115/230V Century Jet Pump Motor # T1052

T1052 Century 1/2 hp 3600 RPM 1-Phase 56J Frame ODP Jet Pump Motor

The T1052 is a 1/2 horsepower, single-phase jet pump motor designed for pool and spa pumps requiring a C-face mount. It replaces Marathon model C1088 and 5KC39HN2501X, providing reliable performance in residential and commercial pump applications.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/230 V
• Amperage: 8.6/4.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56J frame, C-face
• Shaft Dimensions: Threaded shaft, 5/8" diameter x 1 7/8" length
• Rotation: Counterclockwise (CCW) pump end
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and an automatic overload protection system with a service factor of 1.6. It includes four threaded bolt holes spaced 5 7/8" on center across the shaft for secure mounting of pumps or gear heads. The motor does not include a base and has a wiring diagram located on the nameplate for easy installation.

Cross Reference

• Marathon C1088, 5KC39HN2501X

Warranty

1 Year Manufacturer Warranty
