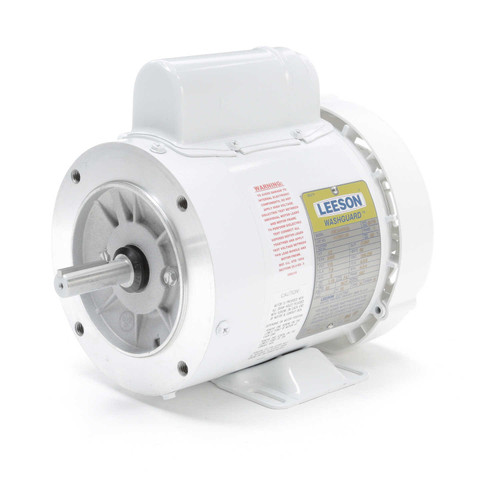

113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty
113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty
113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty
113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty
113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty
113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty
113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty
113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty

Leeson

113581.00 Leeson | 1/2 hp 3600 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty

(No reviews) Write a Review
$573.85
$485.99
SKU 113581.00
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 3600
Phase Single Phase
Frame 56C
Hertz 60 Hz
Amperage 7.6/3.8 Amps
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 3600 RPM, 7.6/3.8 amps 115/208-230 Volts 60hz. single Phase Motor
  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Leeson Washguard Motor -Rigid Base
  • Service Factor: 1.15 - overload protection = None - Class F Insulation
  • 1 Year Manufacture Warranty

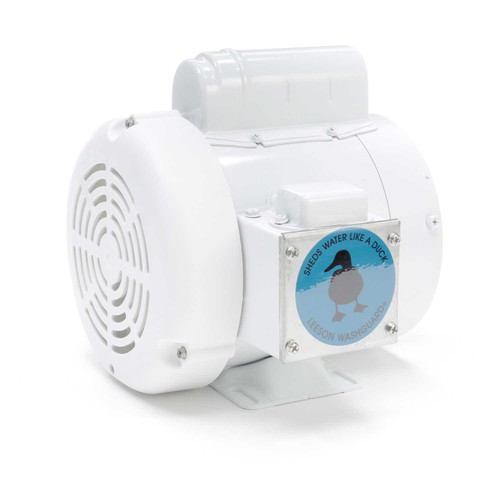

Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. IRIS insulation system.

C6C34WK3L, 113581.00
Replaces Marathon N558, 056C34W5307

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 3600
Phase Single Phase
Frame 56C
Hertz 60 Hz
Amperage 7.6/3.8 Amps
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
