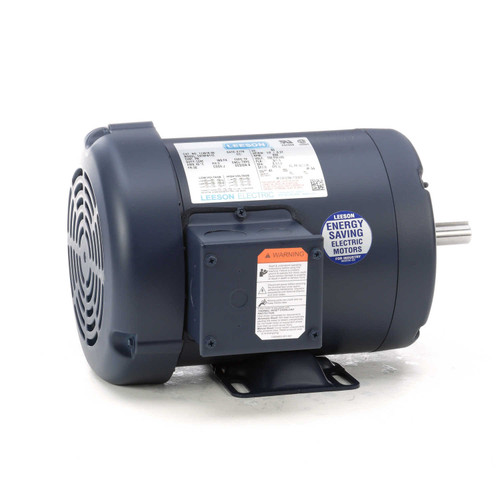

114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC
114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC
114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC
114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC
114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC
114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC
114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC
114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC

Leeson

114618.00 Leeson | 1/2 hp 850 RPM 56 Frame 208-230/460 Volts TEFC

(No reviews) Write a Review
$938.40
$795.00
SKU 114618
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 850
Phase Three Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 3.0/1.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 850 RPM, 3.0/1.5 amps 208-230/460 Volts 60hz. Three Phase Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C6T8FB11C, 114618.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 850
Phase Three Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 3.0/1.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
