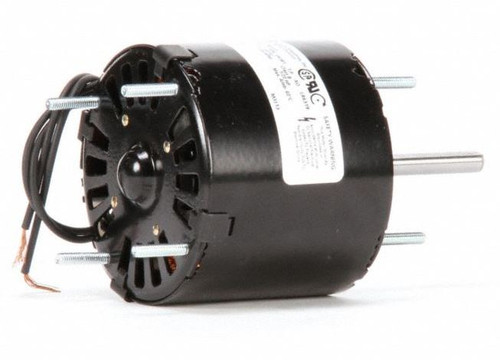

Fasco D188 Motor | 1/20hp 1500 RPM CW 3.3" Diameter 230 Volts Kramer-Trenton Refrigeration Motor

Fasco D188 Motor | 1/20hp 1500 RPM CW 3.3" Diameter 230 Volts Kramer-Trenton Refrigeration Motor

The Fasco D188 is a compact refrigeration motor designed for reliable performance in HVAC and refrigeration applications. It serves as a direct replacement for Kramer-Trenton and compatible models such as Fedders S196-47-2, S196-47-3, and Dayton 38N550.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1500
• Voltage: 230 Volts
• Amperage: 0.9 amps
• Enclosure: Open Ventilation, Air Over
• Frame / Diameter: 3.3" diameter
• Shaft Dimensions: 5/16" diameter x 2 1/4" length
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and includes four studs on each end for secure installation. Extra studs can be removed if not required, and the shaft length can be shortened to fit specific applications. The motor length excluding the shaft measures 2 7/8".

Cross Reference

• Kramer-Trenton; Fedders S196-47-2, S196-47-3. Dayton 38N550

Warranty

1 Year Manufacturer Warranty
