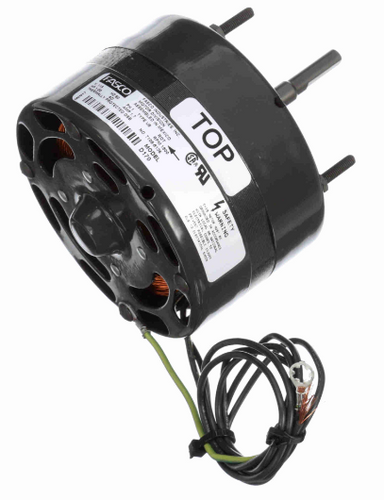

Fasco D170 Motor | 1/20 hp 1500 RPM CW 4.4" Diameter 115 Volts

Fasco D170 Motor | 1/20 hp 1500 RPM CW 4.4" Diameter 115 Volts

The Fasco D170 is a compact electric motor designed for attic exhaust and attic fan applications. It serves as a reliable replacement motor compatible with models such as the Dayton 241X21.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 1.7 amps
• Frame / Diameter: 4.4"
• Shaft Dimensions: 5/16" diameter x 2 1/4" length
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a belly band or stud mount with a bolt circle diameter of 3.89", allowing versatile installation options. The motor body length excluding the shaft measures 2 3/4", making it suitable for compact spaces.

Warranty

1 Year Manufacturer Warranty
