9632 Nidec | 1/20 hp 1550 RPM 1-Speed 115V; 5.6" Condenser Motor

9632 Nidec | 1/20 hp 1550 RPM 1-Speed 115V; 5.6" Condenser Motor

This 9632 Nidec condenser motor is a 1/20 horsepower, single-speed motor designed for refrigeration evaporator blower applications. It serves as a reliable replacement motor with reversible rotation and is engineered for continuous duty in HVAC systems.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1550
• Voltage: 115V
• Amperage: 0.85 amps
• Enclosure: Open Air Over

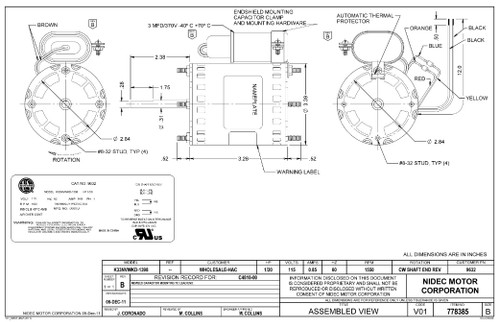

• Frame / Diameter: 3.3" Diameter, 5.062" Motor Case Length
• Shaft Dimensions: 3/16" x 2.38"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a stud mount design for secure installation and includes a capacitor for immediate use. It is a Permanent Split Capacitor (PSC) motor with automatic overload protection and Class B insulation, suitable for operation in ambient temperatures up to 40°C at 60 Hz. The motor comes with 12" leads for easy wiring connection.

Warranty

1 Year Manufacturer Warranty
