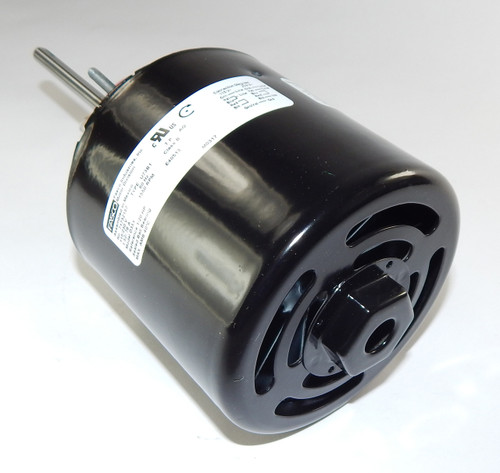

Fasco D351 Motor | 1/20 hp 1550 RPM 115/230V CWSE TEFC 3.3" Fasco

Fasco D351 Motor | 1/20 hp 1550 RPM 115/230V CWSE TEFC 3.3"

The Fasco D351 is a compact, durable motor designed for HVAC and industrial applications. It replaces Century 351 motors and is ideal for equipment requiring a 1/20 horsepower motor with clockwise shaft end rotation.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1550
• Voltage: 115/230V 60Hz
• Amperage: 1.52/0.76 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: 3.3" diameter
• Shaft Dimensions: 5/16" diameter x 4.5" length
• Rotation: CWSE (Clockwise Shaft End)
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a 4.25" length excluding the shaft and includes four mounting studs on the shaft end for secure installation. It comes with 12" leads for easy wiring and is designed for straightforward replacement in compatible equipment.

Cross Reference

• Century 351

Warranty

1 Year Manufacturer Warranty
