Fasco D1133 Motor | 1/20 hp 1550 RPM CW 3.3" Diameter 115V (Heatcraft)

Fasco D1133 Motor | 1/20 hp 1550 RPM CW 3.3" Diameter 115V (Heatcraft)

The Fasco D1133 is a 1/20 horsepower shaded pole motor designed for condenser fans and refrigeration applications. It serves as a reliable replacement for Heatcraft and Dayton motor models, suitable for evaporative coolers, walk-in coolers, and refrigerated display cases.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1550
• Voltage: 115V
• Amperage: 1.7 amps
• Frame / Diameter: 3.3"
• Shaft Dimensions: 5/16" x 2 5/8"
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

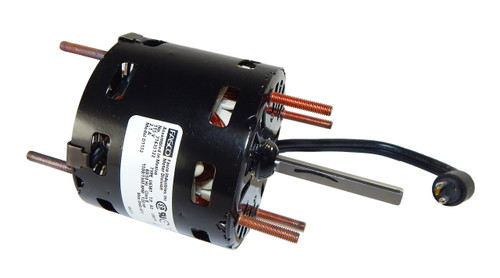

This motor features a compact 3" case length and is designed for versatile mounting options, including belly band or stud mount configurations with four mounting studs located on the shaft end. Its shaded pole design ensures quiet and efficient operation in various HVAC and refrigeration systems.

Warranty

1 Year Manufacturer Warranty
