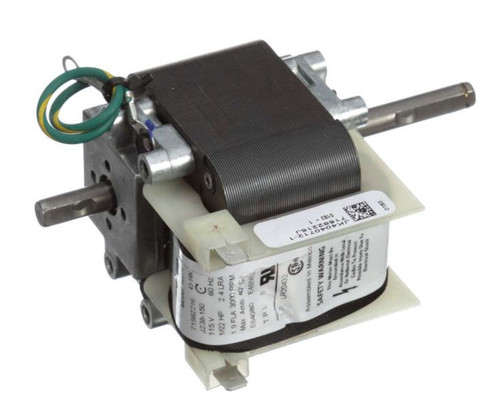

Fasco K674 Motor | 1/22 hp, 1.9 amps, 115V for Rheem Rudd (J238-150-1571)

Fasco K674 Motor | 1/22 hp, 1.9 amps, 115V for Rheem Rudd (J238-150-1571)

The Fasco K674 is a replacement draft inducer motor designed for Rheem and Ruud HVAC systems. It provides reliable performance for models requiring a 1/22 horsepower motor with specific electrical and mechanical characteristics.

Key Specifications

• Horsepower: 1/22 hp
• RPM: 3000
• Voltage: 115V, 60Hz
• Amperage: 1.9 amps
• Shaft Dimensions: 1.93 inch length x 0.3116 inch diameter (approx. 5/16")
• Rotation: Clockwise (CW) from long shaft end
• Bearings: Ball bearing
• Frame / Diameter: 1.5 inch stack

Product Features & Fitment

This motor includes the motor unit, cooling fan, and jumper leads, with installation instructions provided. It features four mounting holes on each side; however, these holes are not tapped and mounting screws are not included. The Fasco K674 is a suggested replacement for multiple Rheem-Ruud part numbers including J238-150-1571 and Dayton 46E377, ensuring broad compatibility with various HVAC draft inducer applications.

Cross Reference

• Rheem-Ruud HC21ZE117, HC21ZE115, HC23UZ120, HC21ZE114, HC23UZ115, J238-150-1571, HC21ZE117B, HC660-005, 318984-753, 2347563, 3195827, 10704, TJ318984-753, AP5634784, 318984753, 323435-730, 323435730, 323435-724, 323435724, 323435-701, 323435701, HC21ZE114, 321373-712, 321373712, HC21ZE114A, 321373-711, 321373711, 321373-710, 321373710, 321373-709, 321373709, 321373-708, 321373708, 321373-707, 321373707, 321373-706, 321373706, 321373-705, 321373705, 321373-704, 321373704
• Dayton 46E377

Warranty

• Instructions
