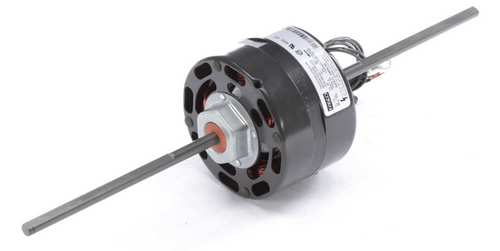

Fasco D333 Motor | 1/25 hp 1550 RPM 4.4" Diameter 115 Volts

Fasco D333 Motor | 1/25 hp 1550 RPM 4.4" Diameter 115 Volts

The Fasco D333 is a compact shaded pole motor designed for HVAC and industrial applications requiring reliable, low-horsepower operation. It serves as a direct replacement motor for systems needing a 1/25 hp, 115-volt motor with a 1550 RPM speed.

Key Specifications

• Horsepower: 1/25 hp
• RPM: 1550
• Voltage: 115 Volts
• Amperage: 1.4 Amps
• Frame / Diameter: 4.4" Diameter
• Shaft Dimensions: Double shaft, 7 1/4" length x 3/8" diameter
• Enclosure: Open Ventilation, Air Over
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a double shaft design with dimensions of 7 1/4" length by 3/8" diameter, suitable for applications requiring dual shaft output. It supports both belly band and stud mounting options with a bolt circle diameter of 3.89". The motor length excluding shafts measures 2 7/8", facilitating compact installation in tight spaces.

Warranty

1 Year Manufacturer Warranty
