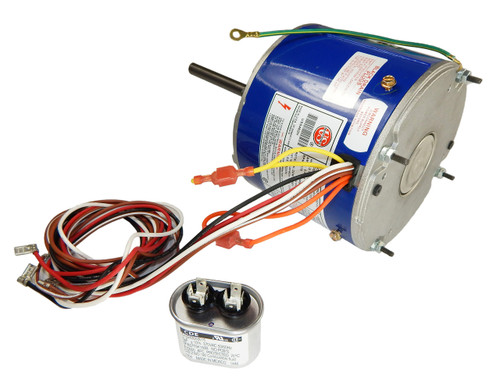

US5464H Nidec | 1/3-1/6 hp 875 RPM 2-Speed 208-230V Direct Drive Condenser Fan Motor
(No reviews)
Write a Review
Write a Review
Nidec
US5464H Nidec | 1/3-1/6 hp 875 RPM 2-Speed 208-230V Direct Drive Condenser Fan Motor
$264.50
$236.67
SKU
US5464H
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230V
Horsepower
1/6 HP
RPM
875
Hertz
60 Hz
Amperage
1.9/1.2 Amps
Bearings
Ball Bearings
Speeds
2-Speed
Rotation
Reversible
Duty
Continuous Duty
US5464H Nidec | 1/3-1/6 hp 875 RPM 2-Speed 208-230V Direct Drive Condenser Fan Motor
This Nidec US5464H condenser fan motor is a versatile, multi-speed replacement designed to fit 1/6 through 1/3 horsepower applications. It is ideal for direct drive condenser fan setups requiring reliable performance and compatibility with Rheem shell mounting holes.
Key Specifications
- Horsepower: 1/3 - 1/6 hp
- RPM: 875
- Voltage: 208-230V 60Hz
- Amperage: 1.9 / 1.2 amps
- Frame / Diameter: 5.6" diameter motor
- Shaft Dimensions: 1/2" diameter x 4 7/8" length
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
This motor features a 2-speed design and a motor body length of 5.25". It requires a 7.5 MFD 370V capacitor (part #7.5DV) for proper operation. The motor includes 36" wire leads and is compatible with Rheem shell mounting holes for straightforward installation. Rated for continuous duty in air-over applications with a maximum ambient temperature of 70ºC, it utilizes a permanent split capacitor design for efficient and reliable performance.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
