LX7932 Nidec | 1/3 hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Fan Motor

LX7932 Nidec 1/3 hp 1075 RPM 1-Speed 208-230V 5.6" Condenser Fan Motor

This LX7932 Nidec condenser fan motor is a reliable replacement designed for Lennox applications, compatible with models such as 97M6201, K55HXLTC-248, and K55HXKVD1268. It delivers efficient, continuous-duty performance for HVAC condenser fan systems.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 1.7 amps
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame / Diameter: 5.6" diameter

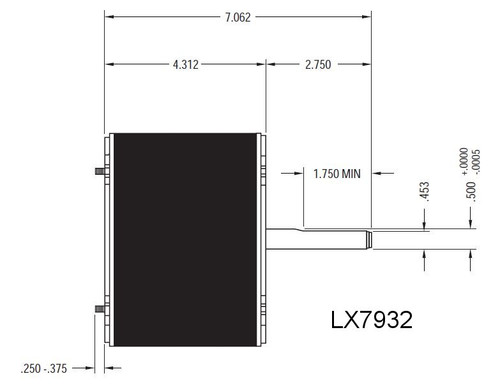

• Shaft Dimensions: 2 3/4" length x 1/2" diameter
• Rotation: Clockwise (CW) shaft end
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection and Class B insulation, suitable for continuous duty at ambient temperatures up to 40°C. It requires a 10 MFD 370V capacitor (part #10DV) for proper operation. The motor includes 35" leads for easy wiring and has a compact motor case length of 4.321".

Cross Reference

• 97M6201, K55HXLTC-248, K55HXKVD1268

Warranty

1 Year Manufacturer Warranty
