Century Electric Motor
Model 9433A Century 1/3 hp 1075 RPM 3-Speed 277V 5.6" Diameter Furnace Motor Century # 9433A

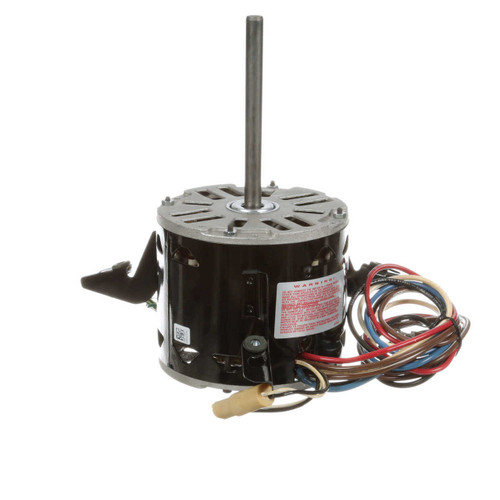

Model 9433A Century 1/3 hp 1075 RPM 3-Speed 277V 5.6" Diameter Furnace Motor
This Century Model 9433A is a direct drive furnace blower motor designed to replace compatible Century motors such as Dayton 48Z354 and F48Y93A01. It is ideal for residential and commercial HVAC applications requiring reliable, multi-speed operation.
Key Specifications
- Horsepower: 1/3 hp
- RPM: 1075
- Voltage: 277 V
- Amperage: 1.9 A
- Frame / Diameter: 5.6"
- Shaft Dimensions: 1/2" diameter x 5.5" length
- Rotation: Reversible
- Bearings: Sleeve bearings
Product Features & Fitment
The motor features a torsion flex mount and is designed for all-angle mounting with sleeve bearings. It requires a 7.5 MFD 370V capacitor (not included) for proper operation. The motor length excluding the shaft is 4.75", and it comes with 24" leads for easy electrical connections. This open ventilated, air-over motor is thermally protected and UL recognized for safety and durability.
Warranty
1 Year Manufacturer Warranty
| Voltage | 277V |
|---|---|
| Horsepower | 1/3 HP |
| RPM | 1075 |
| Hertz | 60 Hz |
| Amperage | 1.9 Amps |
| Bearings | Sleeve Bearings |
| Speeds | 3-Speed |
5KCP39PGV703S (use high spd, orig is single speed only, connect for CWLE, cut shaft as necessary, original has terminal block power connection)
