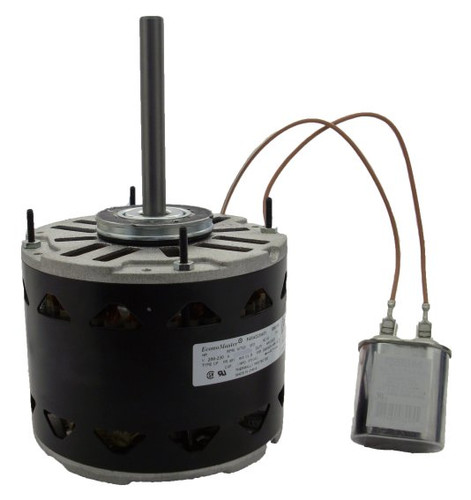

EM3586 | 1/3 hp 1075 RPM 3-Speed 48 Frame 208-230V Direct Drive Furnace Motor

EM3586 | 1/3 hp 1075 RPM 3-Speed 48 Frame 208-230V Direct Drive Furnace Motor

The EM3586 is a direct drive furnace blower motor designed as a popular replacement for various furnace brands. It is suitable for furnace blowers, exhaust fans, and whole house fans, providing reliable multi-speed operation.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 2.5, 1.6, 1.2 amps
• Frame / Diameter: 48Y Frame, 5-5/8" body diameter
• Shaft Dimensions: 1/2" x 4-1/2" diameter
• Rotation: Reversible (reversing plug)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a 3-speed design (high, medium, low) with an air-over construction and continuous duty standard efficiency. It requires a 5 MFD/370V capacitor (not included) for operation. The motor body length measures 4 5/16" and includes 25" wire leads.

The EM3586 is compatible with most belly band mounting applications, where the motor is secured by a strap or clamp around its body or mounted using through-bolts. The shaft can be trimmed to fit specific replacement needs. Compatible belly band brackets include the Torsion Flex Bracket (3-Prong #92-A8617, 4-Prong #FM554) and the Welded 3-Ring Bracket (#KIT317). Suggested cross-reference replacements include Genteq 3S041/3586, Marathon X003, Century/AO Smith D1036, GE 5KCP39KGZ186S/5KCP39KGS081S, Carrier HC41AE193, and Dayton 19L506.

Cross Reference

• Replacement for the following part numbers
• Genteq 3S041, 3586
• Marathon X003
• Century/AO Smith D1036
• GE 5KCP39KGZ186S, 5KCP39KGS081S
• Carrier HC41AE193
• Dayton 19L506

Warranty

1 Year Manufacturer Warranty
