5108 Nidec | 1/3 hp 1100 RPM 3-Speed 230V; 5.6" Blower Motor
5108 Nidec | 1/3 hp 1100 RPM 3-Speed 230V; 5.6" Blower Motor
5108 Nidec | 1/3 hp 1100 RPM 3-Speed 230V; 5.6" Blower Motor
5108 Nidec | 1/3 hp 1100 RPM 3-Speed 230V; 5.6" Blower Motor

Nidec

5108 Nidec | 1/3 hp 1100 RPM 3-Speed 230V; 5.6" Blower Motor

(No reviews) Write a Review
$286.35
$255.76
SKU 5108
UPC 6.63E+11
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1/3 HP
RPM 1100
Type Permanent Split Capacitor
Amperage 2.3 Amps
Bearings Sleeve Bearings
Speeds 3-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/3 hp 1100 RPM 3-Speed 230V 2.3 amps

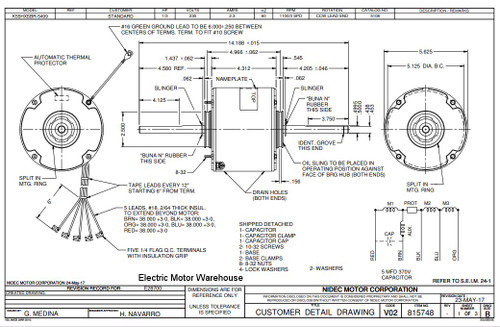

  • Shaft 4.5" x 0.5" x 4.125"
  • Rotation: CW shaft end
  • 5.6" Diameter
  • Motor case length 4.97"
  • Sleeve bearings
  • Resilient Rings
  • Slinger Rings
  • Requires 5 MFD capacitor (Our part # 5DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed Non-Ventilated Enclosure; Class B Insulation; 40C Ambient Temperature; 33" Leads, 60 Hertz. K055SBR5499801B. Replaces various Whirlpool and Sears room air conditioner motors

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1/3 HP
RPM 1100
Type Permanent Split Capacitor
Amperage 2.3 Amps
Bearings Sleeve Bearings
Speeds 3-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
!
