CA3409 Nidec | 1/3 hp, 1600 RPM 1-Speed 208-230V Carrier Blower Motor

CA3409 Nidec | 1/3 hp, 1600 RPM 1-Speed 208-230V Carrier Blower Motor

This 1/3 horsepower, 1600 RPM single-speed blower motor is designed for HVAC applications, serving as a reliable aftermarket replacement for Carrier models including 3S035, 5KCP39FGG015AS, HC41FB666A, 5KCP39FGZ041S, K55HXKMW-0212, and K055KMW0212011B. It operates on 208-230 volts and is suitable for use in residential and commercial blower assemblies.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1600
• Voltage: 208-230V
• Amperage: 2.0 amps
• Enclosure: Open

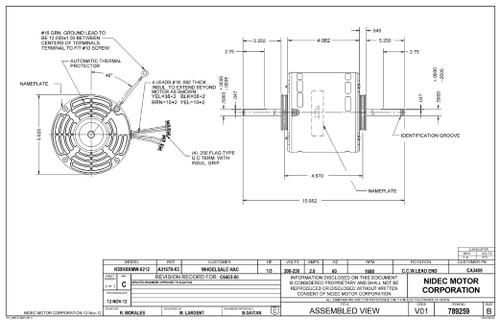

• Frame / Diameter: 5-5/8" body diameter
• Shaft Dimensions: 5.25" length x 1/2" diameter x 5.25" length
• Rotation: CCW lead end
• Bearings: Sleeve

Product Features & Fitment

The motor features a resilient ring mount and a motor case length of 4.062". It includes 38" leads for easy wiring connections and requires a 7.5 MFD 2-prong capacitor (not included) for operation. This PSC motor has an automatic thermal reset and is rated for ambient temperatures up to 40°.

Cross Reference

• 3S035, 5KCP39FGG015AS, HC41FB666A, 5KCP39FGZ041S, K55HXKMW-0212, K055KMW0212011B

Warranty

1 Year Manufacturer Warranty
