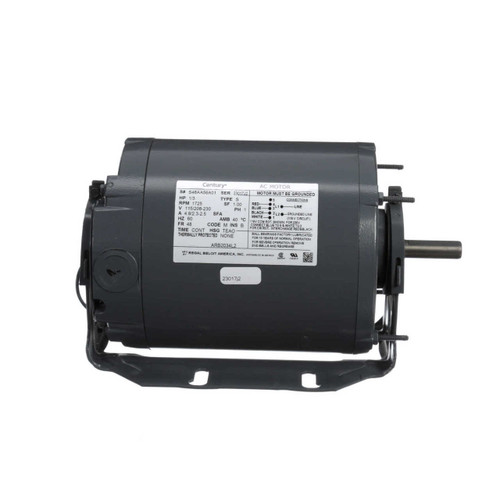

ARB2034L2 Century 1/3 hp 1725 RPM 48 Frame 115/208-230V Belt Drive TEAO Blower Motor Century # ARB2034L2

ARB2034L2 Century 1/3 hp 1725 RPM 48 Frame 115/208-230V Belt Drive TEAO Blower Motor

This Century ARB2034L2 blower motor is a 1/3 horsepower, 1725 RPM replacement motor designed for belt drive applications. It operates on 115/208-230 volts at 60 Hz and is ideal for HVAC systems requiring a durable, totally enclosed air over (TEAO) motor.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1725
• Voltage: 115/208-230 V
• Amperage: 4.9/2.3-2.5 A
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame / Diameter: 48 Frame
• Shaft Dimensions: 1/2" diameter x 1 1/2" length, 3" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient cradle base for stable mounting and extended thru bolts at the shaft end only for secure installation. It includes quick connect terminals for easy wiring and allows for simple rotation changes. This split-phase motor is designed for continuous duty and utilizes Class B insulation for reliable operation.

Warranty

1 Year Manufacturer Warranty
