ARB2034M Century 1/3 hp 1725 RPM 56Z Frame 115V Belt Drive TEAO Blower Motor Century # ARB2034M

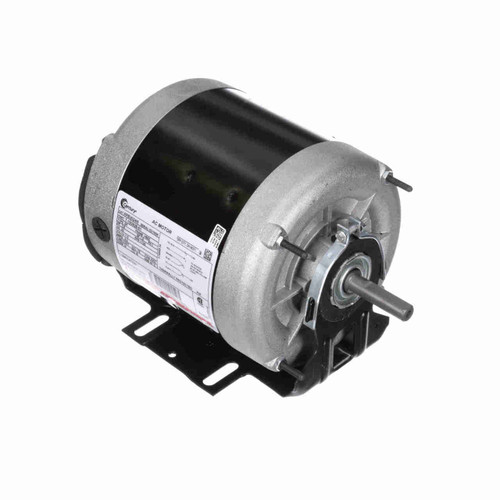

ARB2034M Century 1/3 hp 1725 RPM 56Z Frame 115V Belt Drive TEAO Blower Motor

This Century ARB2034M blower motor is a reliable 1/3 horsepower replacement designed for belt drive applications. It operates at 1725 RPM and 115 volts, making it suitable for various HVAC and industrial motor needs requiring a 56Z frame motor.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1725
• Voltage: 115 V
• Amperage: 4.8 A
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame / Diameter: 56Z
• Shaft Dimensions: 1/2" diameter x 1 7/8" length, 3.5" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient cradle base and extended thru bolts at the shaft end only for secure mounting. It includes manual overload protection and quick connect terminals for easy wiring. Designed for continuous duty, it offers easy rotation change and utilizes Class B insulation for durability. This split phase motor is engineered for efficient and long-lasting performance in blower applications.

Warranty

1 Year Manufacturer Warranty
