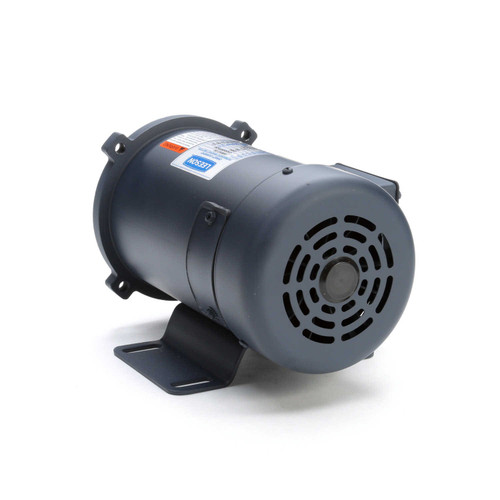

098005.00 Leeson | 1/3 hp 1800 RPM 180 Volts DC 56C Frame TEFC

098005.00 Leeson | 1/3 hp 1800 RPM 180 Volts DC 56C Frame TEFC Motor

This Leeson 1/3 horsepower permanent magnet DC motor operates at 1800 RPM and 180 Volts DC, designed for applications requiring adjustable speed and constant torque. It is ideal for systems utilizing SCR controllers, dynamic braking, or reversible speed control.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 180 Volts DC
• Amperage: 1.7 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter Keyed Shaft
• Rotation: Reversible with simple 2-lead connection

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. When removing the base, reinstall bolts with washers to compensate for base thickness. Compatible with Leeson speed controls models 174307 and 174308, this motor meets NEMA MG1 standards and is UL and CSA listed.

Warranty

1 Year Manufacturer Warranty
