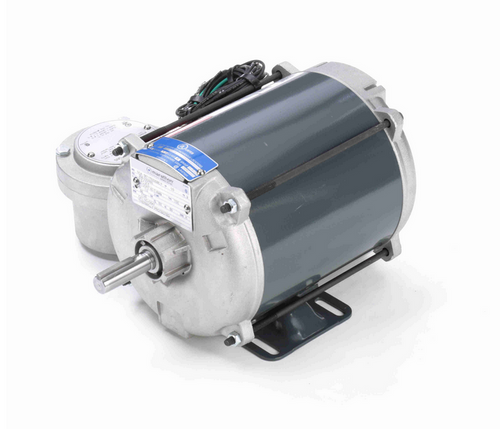

G647 Marathon 1/3 hp 1800 RPM 3-Phase 56 Frame TENV (rigid base) 208-230/460V Marathon Motor
G647 Marathon 1/3 hp 1800 RPM 3-Phase 56 Frame TENV (rigid base) 208-230/460V Marathon Motor
G647 Marathon 1/3 hp 1800 RPM 3-Phase 56 Frame TENV (rigid base) 208-230/460V Marathon Motor
G647 Marathon 1/3 hp 1800 RPM 3-Phase 56 Frame TENV (rigid base) 208-230/460V Marathon Motor
G647 Marathon 1/3 hp 1800 RPM 3-Phase 56 Frame TENV (rigid base) 208-230/460V Marathon Motor
G647 Marathon 1/3 hp 1800 RPM 3-Phase 56 Frame TENV (rigid base) 208-230/460V Marathon Motor

Marathon

G647 Marathon 1/3 hp 1800 RPM 3-Phase 56 Frame TENV (rigid base) 208-230/460V Marathon Motor

(No reviews) Write a Review
$627.56
$543.15
SKU G647
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/3 HP
RPM 1800
Phase Three Phase
Frame 56
Enclosure TENV
Hertz 60 Hz
Amperage 1.2/0.6 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base

CURRENTLY OUT OF STOCK

Description
  • 1/3 hp 1800 RPM, 1.2-1.2/0.6 amps 208-230/460 Volts 60 Hz. 3-Phase
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = Auto
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof three phase electric motor. Shaft has keyway.  Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated

Marathon # 056T17E5309
Replaces Leeson A6T17EB22F, 111932.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/3 HP
RPM 1800
Phase Three Phase
Frame 56
Enclosure TENV
Hertz 60 Hz
Amperage 1.2/0.6 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
!
