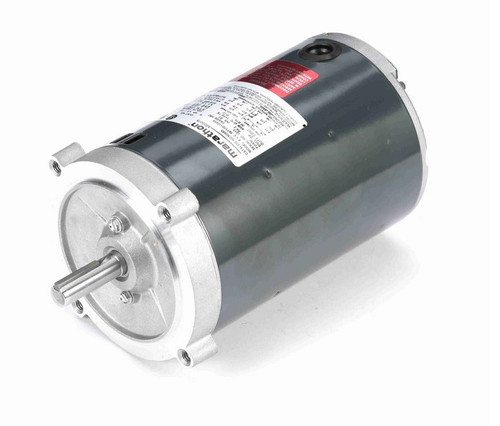

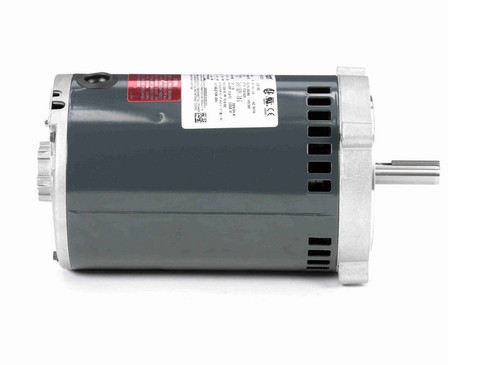

K248A Marathon 1/3 hp 1800 RPM 3-Phase 56C Frame ODP (no base) 230/460V Marathon Electric Motor

K248A Marathon 1/3 hp 1800 RPM 3-Phase 56C Frame ODP (no base) 230/460V Marathon Electric Motor

This Marathon Electric Motor is a general-purpose, three-phase motor designed for various industrial applications requiring reliable performance. It features a NEMA 56C frame with a C-face mount, suitable for direct coupling to pumps, gear heads, or other equipment.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 1.2/0.6 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor is designed without a base, allowing flexible mounting options. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, enabling secure attachment of pumps or gear heads. The shaft features a keyway for positive drive connection. Wiring diagrams are provided on the motor nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
