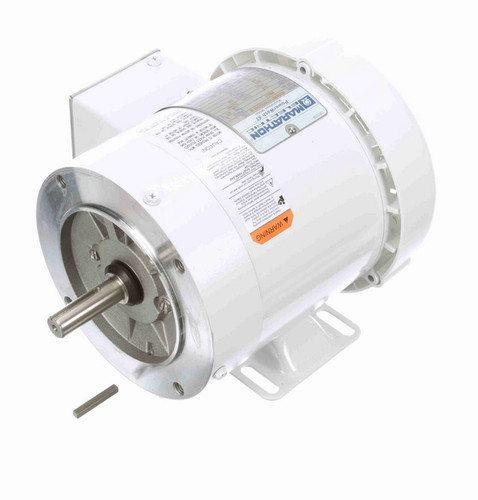

N621 Marathon 1/3 hp 1800 RPM 3-Phase 56C Frame TEFC (with base) 575V Marathon Motor

• 1/3 hp 1800 RPM, 0.68 amps 575 Volts 60hz. 3 phase
• NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

Wash-down motors are use in applications exposed to fresh water washings. This is a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056T17W5335
