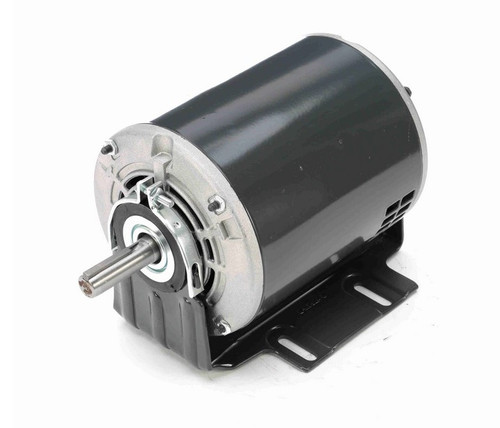

G106 Marathon 1/3 hp 3 phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

G106 Marathon 1/3 hp 3 Phase 1800 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

This Marathon general-purpose motor delivers 1/3 horsepower with a 3-phase 1800 RPM operation, suitable for a wide range of industrial applications. It replaces Leeson models A4T34DJ4D, 101639.00, A4T17DJ26A, and E101520.00, providing reliable performance in demanding environments.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 208-230/460V, 60 Hz
• Amperage: 1.6-1.5/0.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame

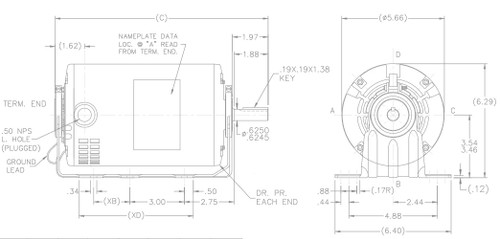

• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base mount designed to reduce vibration and noise during operation. It includes a keyed shaft for secure coupling and is equipped with Class B insulation for enhanced durability. The motor’s wiring diagram is conveniently located on the nameplate to assist with installation. Overload protection is automatic, and the motor is rated with a service factor of 1.35 for added reliability.

Cross Reference

• Leeson A4T34DJ4D, 101639.00, A4T17DJ26A, E101520.00

Warranty

1 Year Manufacturer Warranty
