- 1/3 hp 1800 RPM, 6.6/3.3 amps, 115/230 Volts 60hz.

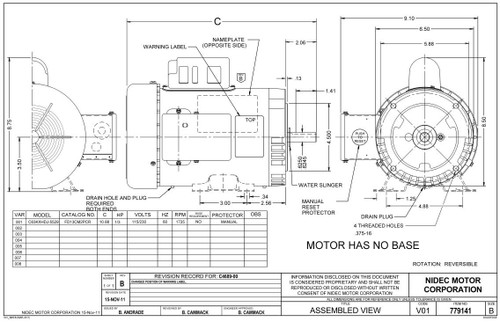

- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- TEFC Totally Enclosed Fan cooled - Service Factor = 1.15; Reversible
- Manual Overload Protection; Class B Insulation
- Round Body Motor - No Base
- 1 Year Manufacture Warranty.
Nidec Farm Duty High Torque, Capacitor Start motor. This Totally Enclosed motor is Excellent for machines where the motor is exposed to saw dust, dirt, oil and other particles in the air that will damage the motor. Motor also has manual overload protection to prevent damage in an overload situation. Mounting is standard NEMA "C" Face, no rigid base.
Agricultural Motor
Model C063HDJ5529015B; Leeson 113290.00
