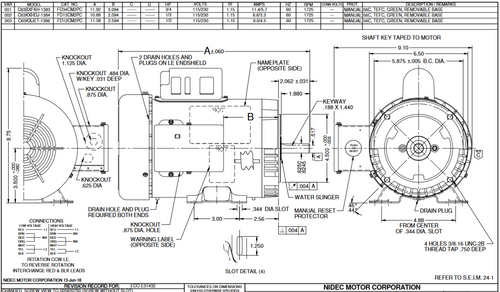

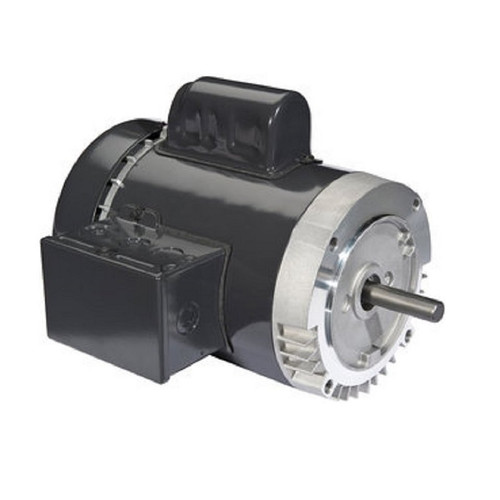

FD13CM2PC Nidec 1/3 HP 1800 RPM 115/230V 56C Frame (Base) TEFC Farm Duty Motor

FD13CM2PC Nidec 1/3 HP 1800 RPM 115/230V 56C Frame (Base) TEFC Farm Duty Motor

This Nidec 1/3 HP motor operates at 1800 RPM with a capacitor start design, suitable for farm duty applications such as augers, compressors, and feeders. It is designed to replace similar 56C frame motors requiring a rugged, high-torque solution with TEFC enclosure for outdoor or dusty environments.

Key Specifications

• Horsepower: 1/3 HP
• RPM: 1800
• Voltage: 115/230V
• Amperage: 6.6/3.3 amps
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: 56C Frame, Rolled Steel
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, Keyed
• Rotation: Counterclockwise (CCW) drive end
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a manual overload protection system. The service factor of 1.15 ensures reliable performance under demanding farm duty conditions. Wiring diagrams are conveniently located on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
