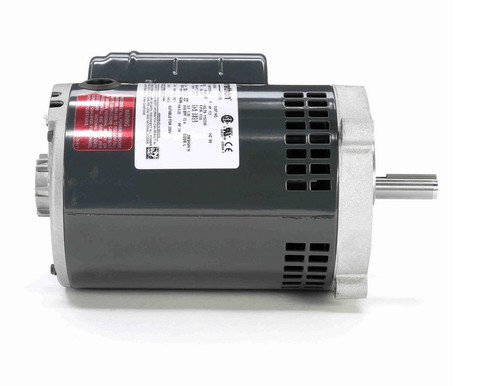

G230A Marathon 1/3 hp 1800 RPM 56C Frame ODP (no base) 115/230V Marathon Electric Motor

G230A Marathon 1/3 hp 1800 RPM 56C Frame ODP (no base) 115/230V Marathon Electric Motor

The Marathon G230A is a general-purpose single-phase electric motor designed for versatile industrial applications. It replaces Leeson C4K17DC12A and E100024.00 models and features a C-face mount suitable for pumps, gear heads, and other equipment requiring a keyed shaft.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 3.8/1.9 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and capacitor run design with Class B insulation and a service factor of 1.35. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft for secure mounting of pumps or gear heads. The motor does not include a base and comes with a wiring diagram on the nameplate for easy installation.

Cross Reference

• Leeson C4K17DC12A, E100024.00

Warranty

1 Year Manufacturer Warranty
