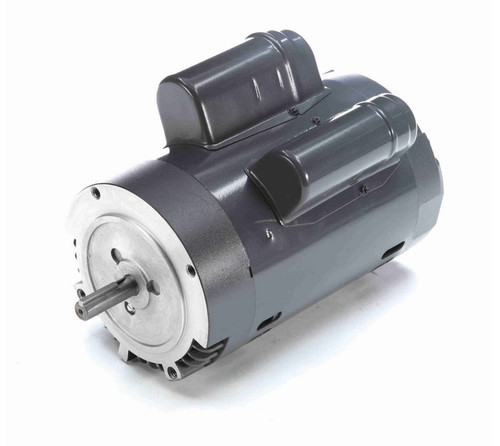

CG361B Marathon 3/4 hp 1800 RPM 56C Frame ODP (no base) 115/230V Marathon Electric Motor

SKU:
CG361B
Weight:
42.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $549.80
Now: $504.40
Adding to cart… The item has been added
  • 3/4 hp 1800 RPM, 6.2/3.1 amps 115/230 Volts 60hz. Capacitor Start - Capacitor Run Motor
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload protection = None
  • No Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof

Marathon # 056B17D15544, 056B17DRC70007A1
Replaces Leeson C6K17DC50A, E119349.00, E119349
