108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty
108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty
108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty
108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty
108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty
108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty
108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty
108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty

Leeson

108424.00 Leeson | 1/3 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty

(No reviews) Write a Review
$800.40
$678.16
SKU 108424
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 90V
Horsepower 1/3 HP
RPM 1800
Frame 90
Enclosure TENV
Amperage 3.5 Amps
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description

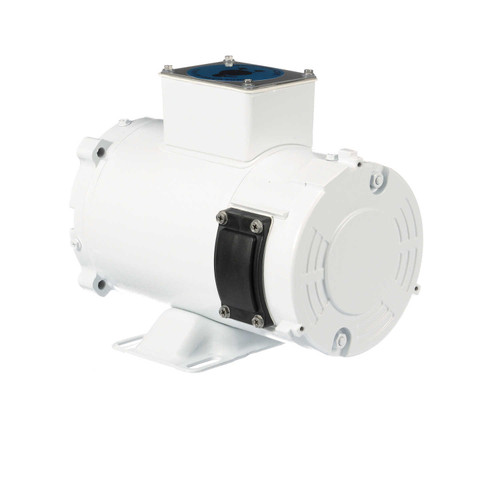

108424.00 Leeson 1/3 HP 1800 RPM 56C TENV Frame 90 Volts DC Wash Down Duty Motor

This Leeson 1/3 HP motor is designed for wash down duty applications requiring a durable, moisture-resistant solution. It features a totally enclosed non-ventilated (TENV) design and is compatible with Leeson speed controls for precise operation.

Key Specifications

  • Horsepower: 1/3 hp
  • RPM: 1800
  • Voltage: 90 Volts DC
  • Amperage: 3.5 amps
  • Enclosure: Totally Enclosed Non Ventilated (TENV)
  • Frame / Diameter: NEMA 56C Frame
  • Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

This motor includes a removable rigid base for flexible mounting options. It is finished with durable Rust-Oleum white epoxy paint and features stainless steel components including the shaft, conduit box cover, nameplate, and fan guard to resist corrosion. Special gaskets, slingers, seals, and four endshield drains enhance moisture resistance, making it ideal for wash down environments. Compatible with Leeson speed controls models 174102, 174107, and 174307.

Warranty

1 Year Manufacturer Warranty

Warranty Information
1 Year Manufacturer Warranty
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 90V
Horsepower 1/3 HP
RPM 1800
Frame 90
Enclosure TENV
Amperage 3.5 Amps
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
