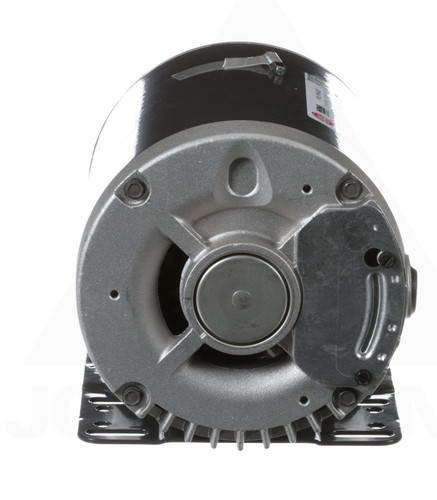

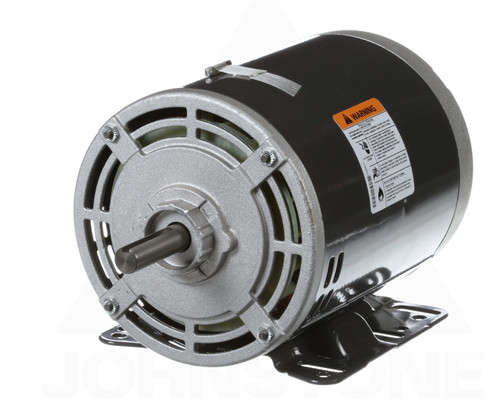

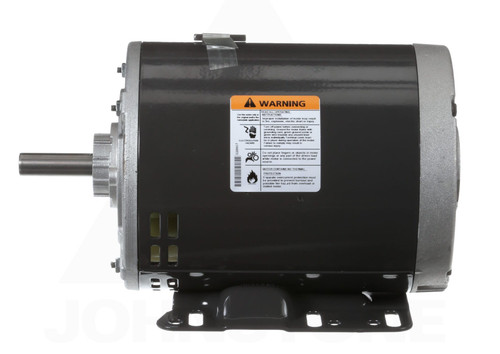

D13P2AH Nidec | 1/3 hp 1800 RPM 56H Frame 208-230/460V Open Drip Nidec Electric Motor

D13P2AH Nidec | 1/3 hp 1800 RPM 56H Frame 208-230/460V Open Drip Nidec Electric Motor

SKU:
D13P2AH
Availability:
Subject to availability
Weight:
26.00 LBS
Width:
10.00 (in)
Height:
10.00 (in)
Depth:
14.00 (in)
Shipping:
Free Shipping
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
208/230/460V
Horsepower:
1/3 HP
RPM:
1800
Phase:
Three Phase
Frame:
56H
Enclosure:
ODP
Amperage:
1.4/0.7 Amps
Bearings:
Ball Bearings
Service Factor:
1.35
Insulation Class:
Class B
Mounting:
Rigid Base
Duty:
Continuous Duty
Was: $264.50
Now: $235.98
Adding to cart… The item has been added
  • 1/3 hp 1800 RPM, 1.4/0.7 amps 208-230/460 Volts Three Phase Motor
  • NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • ODP; Service Factor: 1.35, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

P063BBN1405015B



!
