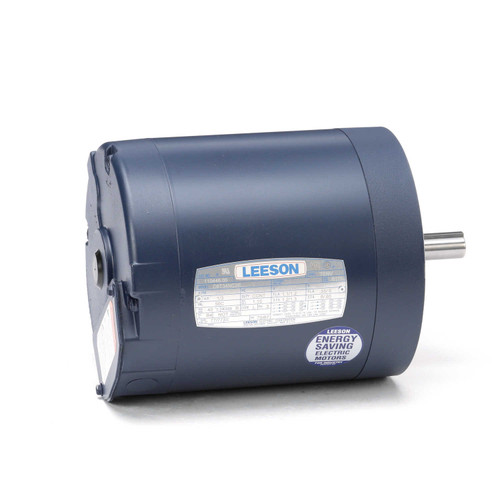

110446.00 Leeson | 1/3 hp 3600 RPM 56C Frame TENV C-Face (No Base) 208-230/460V
(No reviews)
Write a Review
Write a Review
Leeson
110446.00 Leeson | 1/3 hp 3600 RPM 56C Frame TENV C-Face (No Base) 208-230/460V
$437.00
$367.94
SKU
110446.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/3 HP
RPM
3600
Phase
Three Phase
Frame
56C
Enclosure
TENV
Hertz
60 Hz
Amperage
1.1/0.55 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
C-Face
- 1/3 hp 3600 RPM, 1.1/0.55 amps 208-230/460 Volts 60hz. Three Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15 - overload protection = None
- No Base - Reversible - Round Body Motor - Ball Bearings - Class B Insulation
- TENV
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non Ventilated
C6T34NC2E, 110446.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1/3 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 1.1/0.55 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | C-Face |
