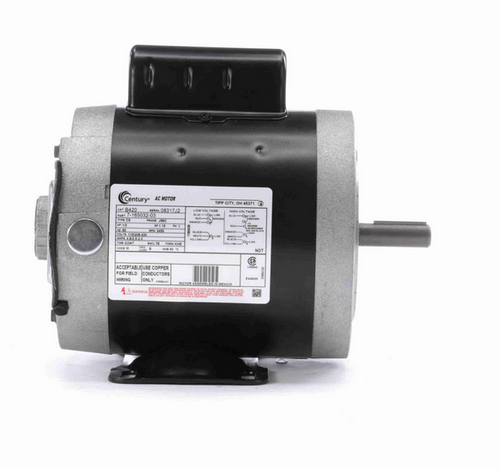

B420 Century 1/3 hp 3600 RPM 56C Frame TENV (rigid base) 115/208-230V Century Motor # B420

• 1/3 hp 3600 RPM, 5.2/2.6-2.5 amps 115/208-230 Volts 60hz. Capacitor Start Induction Run Motor
• NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. B420
